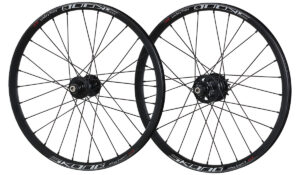

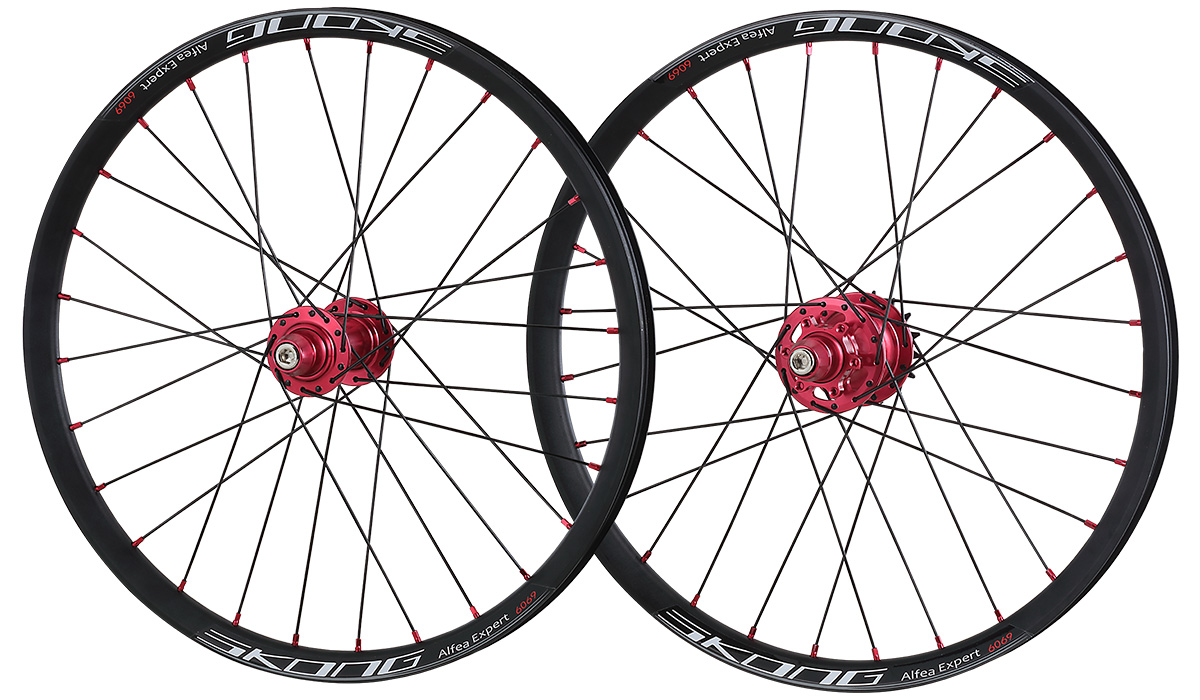

Wheelsets
WH-BMXE201F
WH-BMXE202R
The serrated extruded rim design makes the rim wall thinner and stronger. The weight is comparable to carbon rims of the same specifications. The weight of a complete wheelset is a total of 1460g (front wheel: 628g; rear wheel: 831g).

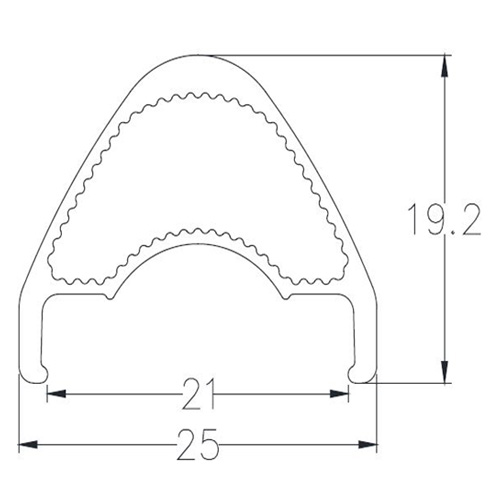

Rim profile
SPECIFICATIONS
Rims
- Size 20" x 28H
- Double-walled aluminum 6069-T6
- Tiny hooked rim design
- Sand black, gloss
- Entro: 406
- Weight: 256g/PC
Spokes
- 14G, Stainless steel
- ED Black
- Nipples available in black or red
Front Hub
- M10 x 100 mm
- 7075 Alloy body and caps (M10 x P1.5 x 30L, 2 PCs)
- PCD: 47
- 2 Sealed bearings
Rear Hub
- M10 x 110 mm
- 7075 Alloy body and caps (M10 x P1.5 x 30L, 2 PCs)
- PCD: 45/62
- 16T cog included
- 4 Sealed bearings
